HD 700 LL
Size: DN 20 - DN 32, 1.1/4΄΄- 2΄΄
Operating Pressure: 420bar–450bar
Temp. min. -40°C
Temp. max. 121°C
HD 400 (4SP)
Size: DN 10 - DN 31
Operating Pressure: 210bar-445bar
Temp. min. -40°C
Temp. max. 100°C
KP 400
Size: DN 1- DN 25, 3/8΄΄- 1΄΄
Operating Pressure: 280bar
Temp. min. -40°C
Temp. max. 121°C
KP 600
Size: DN 10 - DN 31, 3/8΄΄- 1.1/4΄΄
Operating Pressure: 350bar–445bar
Temp. min. -40°C
Temp. max. 121°C
HD 500 (4SH)
Size: DN 16 - DN 51, 5/8΄΄- 2΄΄
Operating Pressure: 250bar–450bar
Temp. min. -40°C
Temp. max. 100°C
HD 700 (R15)
Size: DN 16 - DN 38, 5/8΄΄- 1.1/2΄΄
Operating Pressure: 420bar
Temp. min. -40°C
Temp. max. 121°C
HD 700 PRO
Size: DN 10 - DN 38, 3/8΄΄- 1.1/2΄΄
Operating Pressure: 420bar
Temp. min. -40°C
Temp. max. 121°C
HD 800
Size: DN 16 - DN 31,5/8΄΄- 1.1/4΄΄
Operating Pressure: 500bar
Temp. min. -40°C
Temp. max. 100°C
HD 700 PLUS
Size: DN 19 - DN 51, 3/4΄΄- 2΄΄
Operating Pressure: 420bar
Temp. min. -40°C
Temp. max. 121°C
HD 100 (1SN)
Size: DN 5 - DN 38, 3/16΄΄-1.1/2΄΄
Operating Pressure: 40 bar-250bar
Temp. min. -40°C
Temp. max. 100°C
HD 100 T (1SN)
Size: DN 6 - DN 25, 1/4΄΄-1΄΄
Operating Pressure: 88 bar-225 bar
Temp. min. -55°C
Temp. max. 135°C
KP 100 S (1SC)
Size: DN 8 - DN 31, 1/4 ΄΄- 1.1/4΄΄
Operating Pressure: 100 bar-290 bar
Temp. min. -40°C
Temp. max. 100°C
KP 100 (1SC)
Size: DN 6 - DN 25, 1/4 ΄΄ - 1΄΄
Operating Pressure: 88 bar - 225 bar
Temp. min. -40°C
Temp. max. 100°C
KP 100 P
Size: DN 6 - DN 12, 1/4΄΄- 1/2΄΄
Operating Pressure: 100bar – 120bar
Temp. min. -40°C
Temp. max. 100°C
KP 100 RAIL
Size: DN 8 - DN 25, 5/16 ΄΄ - 1΄΄
Operating Pressure: 88bar – 215bar
Temp. min. -40°C
Temp. max. 100°C
HD 200 (2SN)
Size: DN 5 - DN 38, 3/16΄΄- 1.1/2΄΄
Operating Pressure: 45bar-415bar
Temp. min. -40°C
Temp. max. 100°C

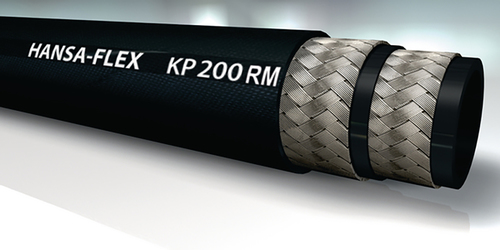

KP 200 RM
Size: DN 6 - DN 25, 1/4΄΄- 1΄΄
Operating Pressure: 200bar–450bar
Temp. min. -40°C
Temp. max. 100°C
HD 200 RM (2SN)
Size: DN 6 - DN 51, 1/4΄΄- 2΄΄
Operating Pressure: 80bar–400bar
Temp. min. -40°C
Temp. max. 100°C
HD 200 S (2SN)
Size: DN 12 - DN 31, 1/2΄΄-1.1/4΄΄
Operating Pressure: 175bar–380bar
Temp. min. -40°C
Temp. max. 100°C
HD 200 T (2SN)
Size: DN 6 - DN 51, 1/4΄΄- 2΄΄
Operating Pressure: 80bar–400bar
Temp. min. -55°C
Temp. max. 135°C
KP 200 (2SC)
Size: DN 6 - DN 25, 1/4΄΄- 1΄΄
Operating Pressure: 165bar–400bar
Temp. min. -40°C
Temp. max. 100°C
KP 200 RAIL
Size: DN 8 - DN 51, 5/16΄΄- 2΄΄
Operating Pressure: 90bar-350bar
Temp. min. -40°C
Temp. max. 100°C
KP 200 NO (2SC)
Size: DN 6 - DN 12, 1/4΄΄- 1/2΄΄
Operating Pressure: 275bar-400bar
Temp. min. -40°C
Temp. max. 100°C
KP 200 PRO (2SC)
Size: DN 6 - DN 25, 1/4΄΄- 1΄΄
Operating Pressure: 165bar-400bar
Temp. min. -40°C
Temp. max. 100°C
KP 200 S
Size: DN 6 - DN 31, 1/4΄΄- 1.1/4΄΄
Operating Pressure: 175bar– 385bar
Temp. min. -40°C
Temp. max. 100°C
KPZ 200
Size: DN 6 - DN 12, 1/4΄΄-1/2΄΄
Operating Pressure: 275 bar – 400 bar
Temp. min. -40°C
Temp. max. 100°C
SG 100 RI EP
Size: DN 19 - DN 125 , 3/4΄΄- 5΄΄
Operating Pressure: 8bar–10bar
Temp. min. -40°C
Temp. max. 125°C
SGD 100
Size: DN 25 - D 100, 1΄΄- 4΄΄
Operating Pressure: 25bar
Temp. min. -40°C
Temp. max. 100°C
MD 100
Size: DN 5 - DN 38, 3/16΄΄-1.13/16΄΄
Operating Pressure: 25 bar – 207 bar
Temp. min. -40°C
Temp. max. 100°C
